K127減速機重量：K127減速機重量380公斤，K127減速機配電機重量分別如下

K127減速機配5.5KW電機重量440公斤，K127減速機配7.5KW電機重量453公斤，K127減速機配11KW電機重量495公斤，K127減速機配15KW電機重量515公斤，K127減速機配18.5KW電機重量552公斤，K127減速機配22KW電機重量565公斤，K127減速機配30KW電機重量633公斤，K127減速機配37KW電機重量680公斤，K127減速機配45KW電機重量715公斤，K127減速機配55KW電機重量800公斤，K127減速機配75KW電機重量910公斤，K127減速機配90KW電機重量1050公斤。直角減速機

K127減速機加油量：可加礦物油

K127減速機M1安裝加21升，K127減速機M2安裝加41.5升，K127減速機M3安裝加44升，K127減速機M4安裝加54升，K127減速機M5安裝加40升，K127減速機M6安裝加41升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

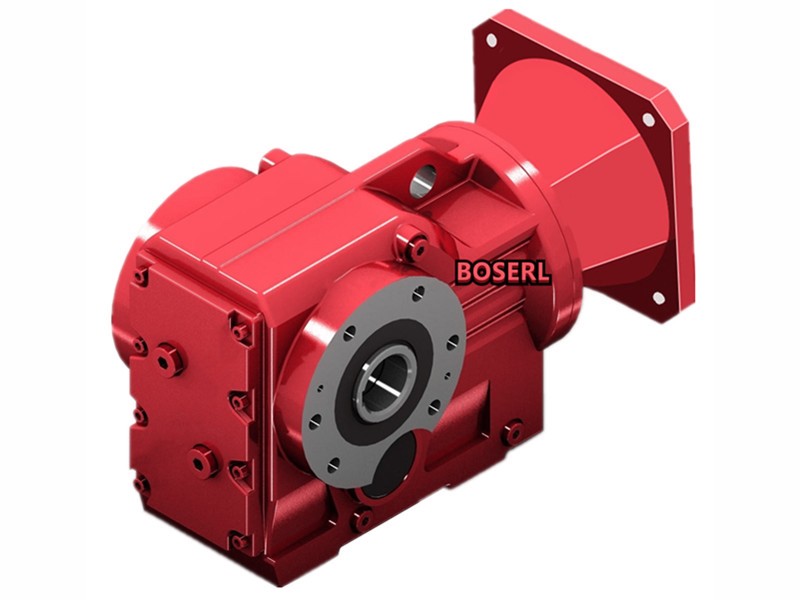

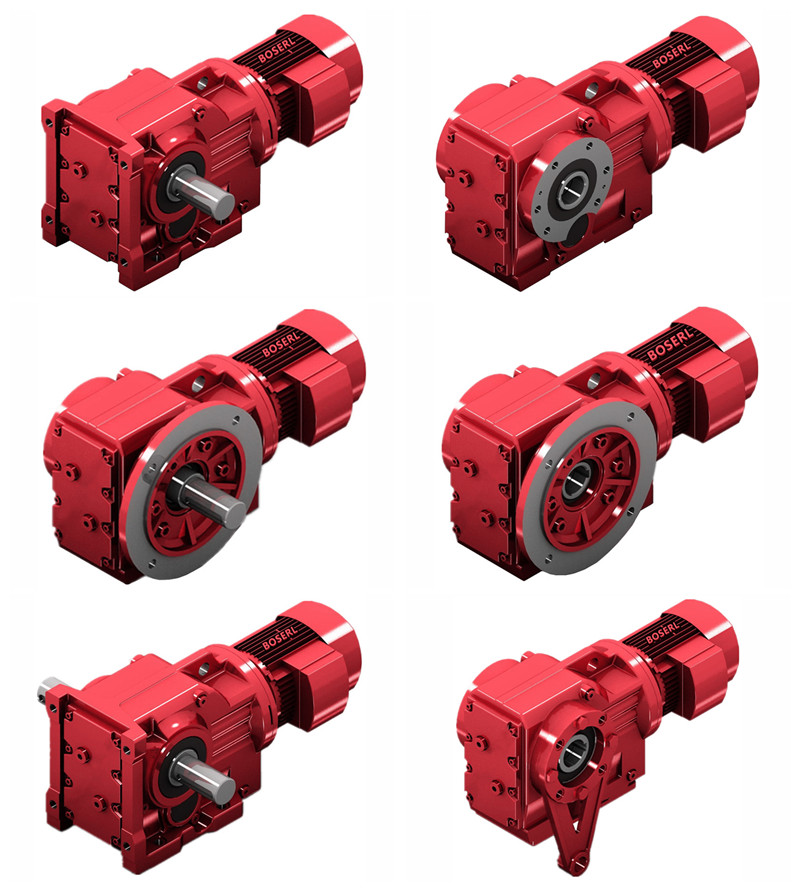

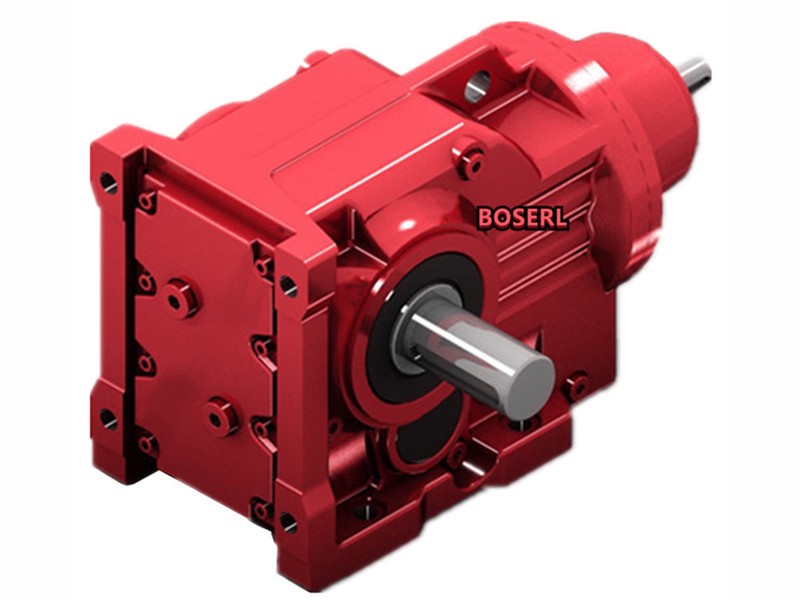

K127減速機實物圖：圖一為K127臥式安裝螺旋錐齒輪減速電機，圖二KF127立式安裝實心軸輸出螺旋錐齒輪減速電機，圖三為KA127臥式安裝空心軸螺旋錐齒輪減速電機，圖四為KAF127立式安裝直角空心軸螺旋錐齒輪減速機。

K127減速機型號表示方法：

K127減速機型號結構K127-B90KW-4P-減速比-安裝方式-接線盒位置。

K127減速機性能參數表結構說明：RS逆止器，V強制冷卻風扇，C防雨罩，Input Configuration代表輸入配置，TF電機熱保護裝置，K127、KF127、KA127、KAF127減速機機座號，N代表徑向負荷，HR手動釋放裝置，1/min代表輸出轉數，HF手動釋放裝置帶自鎖功能。

K127減速機電機接線盒方位說明：本頁附件選型資料視圖為M1安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。可提供S和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

K127減速機結構圖：

K127減速機參數：

K127減速機電機可配單相/直流/變頻/剎車/防爆/伺服/交流/三相電機K127配5.5KW，K127配7.5KW，K127配11KW，K127配15KW，K127配18.5KW，K127配22KW，K127配30KW，K127配37KW，K127配45KW，K127配55KW，K127配75KW，K127配90KW。

K127減速機減速比146.07比，136.14比，122.48比，110.18比，89.89比，81.98比，70.95比，62.60比，54.07比，47.82比，40.19比，36.25比，31.37比，27.68比，23.91比，21.15比，17.77比，14.35比，12.79比，10.74比，8.68比。

K127減速機輸出轉數9.6轉，10轉，11轉，13轉，16轉，17轉，20轉，22轉，26轉，29轉，35轉，39轉，45轉，51轉，59轉，66轉，79轉，98轉，109轉，130轉，161轉。（以上轉數均為四級電機算出的，可用2P/6P/8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）

K127減速機輸出扭矩13000N.m，12100N.m，8530N.m，8000N.m，7230N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

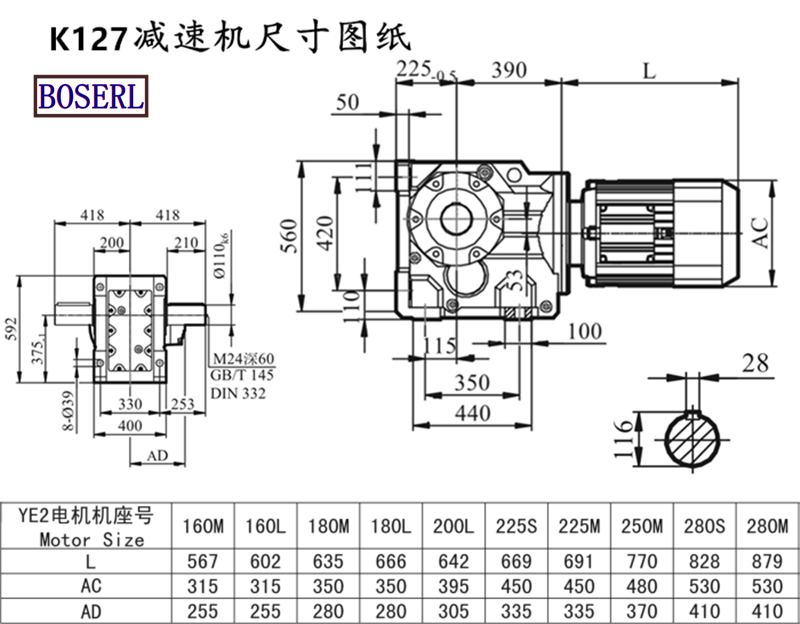

K127減速機尺寸圖紙：高592*寬618（帶輸出軸）*長615K系列減速機

K127減速機型號：K127AQA80,K127AQA100,K127AQA115,K127AQA140,K127AQA160,K127AQA190,K127AQH80,K127AQH100,K127AQH115,K127AQH140,K127AQH160,K127AQH190,JRTK127-Y112M4,JRTK127-Y11KW,JRTK127-Y132M4,JRTK127-Y15KW,JRTK127-Y160M4,JRTK127-Y18.5KW,JRTK127-Y180M4,JRTK127-Y200M4,JRTK127-Y225M4,JRTK127-Y22KW,JRTK127-Y250M4,JRTK127-Y280M4,JRTK127-Y30KW,JRTK127-Y37KW,JRTK127-Y45KW,JRTK127-Y4KW,JRTK127-Y5.5KW,JRTK127-Y55KW,JRTK127-Y7.5KW,JRTK127-Y75KW,JRTK127-YEJ112M4,JRTK127-YEJ132M4,JRTK127-YEJ160M4,JRTK127-YEJ180M4,JRTK127-YEJ200M4,JRTK127-YEJ225M4,JRTK127-YEJ250M4,JRTK127-YEJ280M4,JRTK127-YS112M4,JRTK127-YS132M4,JRTK127-YS160M4,JRTK127-YS180M4,JRTK127-YS200M4,JRTK127-YS225M4,JRTK127-YS250M4,JRTK127-YS280M4,JRTK127-YVP112M4,JRTK127-YVP132M4,JRTK127-YVP160M4,JRTK127-YVP180M4,JRTK127-YVP200M4,JRTK127-YVP225M4,JRTK127-YVP250M4,JRTK127-YVP280M4,JRTK127-YVPEJ112M4,JRTK127-YVPEJ132M4,JRTK127-YVPEJ160M4,JRTK127-YVPEJ180M4,JRTK127-YVPEJ200M4,JRTK127-YVPEJ225M4,JRTK127-YVPEJ250M4,JRTK127-YVPEJ280M4,EWK127-Y112M4,EWK127-Y11KW,EWK127-Y132M4,EWK127-Y15KW,EWK127-Y160M4,EWK127-Y18.5KW,EWK127-Y180M4,EWK127-Y200M4,EWK127-Y225M4,EWK127-Y22KW,EWK127-Y250M4,EWK127-Y280M4,EWK127-Y30KW,EWK127-Y37KW,EWK127-Y45KW,EWK127-Y4KW,EWK127-Y5.5KW,EWK127-Y55KW,EWK127-Y7.5KW,EWK127-Y75KW,EWK127-YEJ112M4,EWK127-YEJ132M4,EWK127-YEJ160M4,EWK127-YEJ180M4,EWK127-YEJ200M4,EWK127-YEJ225M4,EWK127-YEJ250M4,EWK127-YEJ280M4,EWK127-YS112M4,EWK127-YS132M4,EWK127-YS160M4,EWK127-YS180M4,EWK127-YS200M4,EWK127-YS225M4,EWK127-YS250M4,EWK127-YS280M4,EWK127-YVP112M4,EWK127-YVP132M4,EWK127-YVP160M4,EWK127-YVP180M4,EWK127-YVP200M4,EWK127-YVP225M4,EWK127-YVP250M4,EWK127-YVP280M4,EWK127-YVPEJ112M4,EWK127-YVPEJ132M4,EWK127-YVPEJ160M4,EWK127-YVPEJ180M4,EWK127-YVPEJ200M4,EWK127-YVPEJ225M4,EWK127-YVPEJ250M4,EWK127-YVPEJ280M4,SLK127-Y112M4,SLK127-Y11KW,SLK127-Y132M4,SLK127-Y15KW,SLK127-Y160M4,SLK127-Y18.5KW,SLK127-Y180M4,SLK127-Y200M4,SLK127-Y225M4,SLK127-Y22KW,SLK127-Y250M4,SLK127-Y280M4,SLK127-Y30KW,SLK127-Y37KW,SLK127-Y45KW,SLK127-Y4KW,SLK127-Y5.5KW,SLK127-Y55KW,SLK127-Y7.5KW,SLK127-Y75KW,SLK127-YEJ112M4,SLK127-YEJ132M4,SLK127-YEJ160M4,SLK127-YEJ180M4,SLK127-YEJ200M4,SLK127-YEJ225M4,SLK127-YEJ250M4,SLK127-YEJ280M4,SLK127-YS112M4,SLK127-YS132M4,SLK127-YS160M4,SLK127-YS180M4,SLK127-YS200M4,SLK127-YS225M4,SLK127-YS250M4,SLK127-YS280M4,SLK127-YVP112M4,SLK127-YVP132M4,SLK127-YVP160M4,SLK127-YVP180M4,SLK127-YVP200M4,SLK127-YVP225M4,SLK127-YVP250M4,SLK127-YVP280M4,SLK127-YVPEJ112M4,SLK127-YVPEJ132M4,SLK127-YVPEJ160M4,SLK127-YVPEJ180M4,SLK127-YVPEJ200M4,SLK127-YVPEJ225M4,SLK127-YVPEJ250M4,SLK127-YVPEJ280M4,DSZK127-Y112M4,DSZK127-Y11KW,DSZK127-Y132M4,DSZK127-Y15KW,DSZK127-Y160M4,DSZK127-Y18.5KW,DSZK127-Y180M4,DSZK127-Y200M4,DSZK127-Y225M4,DSZK127-Y22KW,DSZK127-Y250M4,DSZK127-Y280M4,DSZK127-Y30KW,DSZK127-Y37KW,DSZK127-Y45KW,DSZK127-Y4KW,DSZK127-Y5.5KW,DSZK127-Y55KW,DSZK127-Y7.5KW,DSZK127-Y75KW,DSZK127-YEJ112M4,DSZK127-YEJ132M4,DSZK127-YEJ160M4,DSZK127-YEJ180M4,DSZK127-YEJ200M4,DSZK127-YEJ225M4,DSZK127-YEJ250M4,DSZK127-YEJ280M4,DSZK127-YS112M4,DSZK127-YS132M4,DSZK127-YS160M4,DSZK127-YS180M4,DSZK127-YS200M4,DSZK127-YS225M4,DSZK127-YS250M4,DSZK127-YS280M4,DSZK127-YVP112M4,DSZK127-YVP132M4,DSZK127-YVP160M4,DSZK127-YVP180M4,DSZK127-YVP200M4,DSZK127-YVP225M4,DSZK127-YVP250M4,DSZK127-YVP280M4,DSZK127-YVPEJ112M4,DSZK127-YVPEJ132M4,DSZK127-YVPEJ160M4,DSZK127-YVPEJ180M4,DSZK127-YVPEJ200M4,DSZK127-YVPEJ225M4,DSZK127-YVPEJ250M4,DSZK127-YVPEJ280M4,BK127-Y112M4,BK127-Y11KW,BK127-Y132M4,BK127-Y15KW,BK127-Y160M4,BK127-Y18.5KW,BK127-Y180M4,BK127-Y200M4,BK127-Y225M4,BK127-Y22KW,BK127-Y250M4,BK127-Y280M4,BK127-Y30KW,BK127-Y37KW,BK127-Y45KW,BK127-Y4KW,BK127-Y5.5KW,BK127-Y55KW,BK127-Y7.5KW,BK127-Y75KW,BK127-YEJ112M4,BK127-YEJ132M4,BK127-YEJ160M4,BK127-YEJ180M4,BK127-YEJ200M4,BK127-YEJ225M4,BK127-YEJ250M4,BK127-YEJ280M4,BK127-YS112M4,BK127-YS132M4,BK127-YS160M4,BK127-YS180M4,BK127-YS200M4,BK127-YS225M4,BK127-YS250M4,BK127-YS280M4,BK127-YVP112M4,BK127-YVP132M4,BK127-YVP160M4,BK127-YVP180M4,BK127-YVP200M4,BK127-YVP225M4,BK127-YVP250M4,BK127-YVP280M4,BK127-YVPEJ112M4,BK127-YVPEJ132M4,BK127-YVPEJ160M4,BK127-YVPEJ180M4,BK127-YVPEJ200M4,BK127-YVPEJ225M4,BK127-YVPEJ250M4,BK127-YVPEJ280M4,GK127-Y112M4,GK127-Y11KW,GK127-Y132M4,GK127-Y15KW,GK127-Y160M4,GK127-Y18.5KW,GK127-Y180M4,GK127-Y200M4,GK127-Y225M4,GK127-Y22KW,GK127-Y250M4,GK127-Y280M4,GK127-Y30KW,GK127-Y37KW,GK127-Y45KW,GK127-Y4KW,GK127-Y5.5KW,GK127-Y55KW,GK127-Y7.5KW,GK127-Y75KW,GK127-YEJ112M4,GK127-YEJ132M4,GK127-YEJ160M4,GK127-YEJ180M4,GK127-YEJ200M4,GK127-YEJ225M4,GK127-YEJ250M4,GK127-YEJ280M4,GK127-YS112M4,GK127-YS132M4,GK127-YS160M4,GK127-YS180M4,GK127-YS200M4,GK127-YS225M4,GK127-YS250M4,GK127-YS280M4,GK127-YVP112M4,GK127-YVP132M4,GK127-YVP160M4,GK127-YVP180M4,GK127-YVP200M4,GK127-YVP225M4,GK127-YVP250M4,GK127-YVP280M4,GK127-YVPEJ112M4,GK127-YVPEJ132M4,GK127-YVPEJ160M4,GK127-YVPEJ180M4,GK127-YVPEJ200M4,GK127-YVPEJ225M4,GK127-YVPEJ250M4,GK127-YVPEJ280M4,KC127-Y112M4,KC127-Y11KW,KC127-Y132M4,KC127-Y15KW,KC127-Y160M4,KC127-Y18.5KW,KC127-Y180M4,KC127-Y200M4,KC127-Y225M4,KC127-Y22KW,KC127-Y250M4,KC127-Y280M4,KC127-Y30KW,KC127-Y37KW,KC127-Y45KW,KC127-Y4KW,KC127-Y5.5KW,KC127-Y55KW,KC127-Y7.5KW,KC127-Y75KW,KC127-YEJ112M4,KC127-YEJ132M4,KC127-YEJ160M4,KC127-YEJ180M4,KC127-YEJ200M4,KC127-YEJ225M4,KC127-YEJ250M4,KC127-YEJ280M4,KC127-YS112M4,KC127-YS132M4,KC127-YS160M4,KC127-YS180M4,KC127-YS200M4,KC127-YS225M4,KC127-YS250M4,KC127-YS280M4,KC127-YVP112M4,KC127-YVP132M4,KC127-YVP160M4,KC127-YVP180M4,KC127-YVP200M4,KC127-YVP225M4,KC127-YVP250M4,KC127-YVP280M4,KC127-YVPEJ112M4,KC127-YVPEJ132M4,KC127-YVPEJ160M4,KC127-YVPEJ180M4,KC127-YVPEJ200M4,KC127-YVPEJ225M4,KC127-YVPEJ250M4,KC127-YVPEJ280M4,MTJ127-Y112M4,MTJ127-Y11KW,MTJ127-Y132M4,MTJ127-Y15KW,MTJ127-Y160M4,MTJ127-Y18.5KW,MTJ127-Y180M4,MTJ127-Y200M4,MTJ127-Y225M4,MTJ127-Y22KW,MTJ127-Y250M4,MTJ127-Y280M4,MTJ127-Y30KW,MTJ127-Y37KW,MTJ127-Y45KW,MTJ127-Y4KW,MTJ127-Y5.5KW,MTJ127-Y55KW,MTJ127-Y7.5KW,MTJ127-Y75KW,MTJ127-YEJ112M4,MTJ127-YEJ132M4,MTJ127-YEJ160M4,MTJ127-YEJ180M4,MTJ127-YEJ200M4,MTJ127-YEJ225M4,MTJ127-YEJ250M4,MTJ127-YEJ280M4,MTJ127-YS112M4,MTJ127-YS132M4,MTJ127-YS160M4,MTJ127-YS180M4,MTJ127-YS200M4,MTJ127-YS225M4,MTJ127-YS250M4,MTJ127-YS280M4,MTJ127-YVP112M4,MTJ127-YVP132M4,MTJ127-YVP160M4,MTJ127-YVP180M4,MTJ127-YVP200M4,MTJ127-YVP225M4,MTJ127-YVP250M4,MTJ127-YVP280M4,MTJ127-YVPEJ112M4,MTJ127-YVPEJ132M4,MTJ127-YVPEJ160M4,MTJ127-YVPEJ180M4,MTJ127-YVPEJ200M4,MTJ127-YVPEJ225M4,MTJ127-YVPEJ250M4,MTJ127-YVPEJ280M4,WXK127-WSS112M4,WXK127-WSS11KW,WXK127-WSS132M4,WXK127-WSS15KW,WXK127-WSS160M4,WXK127-WSS18.5KW,WXK127-WSS180M4,WXK127-WSS200M4,WXK127-WSS225M4,WXK127-WSS22KW,WXK127-WSS250M4,WXK127-WSS280M4,WXK127-WSS30KW,WXK127-WSS37KW,WXK127-WSS45KW,WXK127-WSS4KW,WXK127-WSS5.5KW,WXK127-WSS55KW,WXK127-WSS7.5KW,WXK127-WSS75KW,WXK127-WSSB112M4,WXK127-WSSB132M4,WXK127-WSSB160M4,WXK127-WSSB180M4,WXK127-WSSB200M4,WXK127-WSSB225M4,WXK127-WSSB250M4,WXK127-WSSB280M4,WXK127-WSSVP112M4,WXK127-WSSVP132M4,WXK127-WSSVP160M4,WXK127-WSSVP180M4,WXK127-WSSVP200M4,WXK127-WSSVP225M4,WXK127-WSSVP250M4,WXK127-WSSVP280M4,WXK127-WSSVPB112M4,WXK127-WSSVPB132M4,WXK127-WSSVPB160M4,WXK127-WSSVPB180M4,WXK127-WSSVPB200M4,WXK127-WSSVPB225M4,WXK127-WSSVPB250M4,WXK127-WSSVPB280M4。
