SF87減速機重量：SF87減速機重量102公斤，SF87減速機帶電機重量分別如下

SF87減速機帶0.75KW電機重量118公斤，SF87減速機帶1.1KW電機重量122公斤，SF87減速機帶1.5KW電機重量125公斤，SF87減速機帶2.2KW電機重量134公斤，SF87減速機帶3KW電機重量137公斤，SF87減速機帶4KW電機重量148公斤，SF87減速機帶5.5KW電機重量162公斤，SF87減速機帶7.5KW電機重量175公斤，SF87減速機帶11KW電機重量217公斤，SF87減速機帶15KW電機重量237公斤。

SF87減速機加油量：可加合成油

SF87減速機M2方式安裝加8升，SF87減速機M1方式安裝加3.8升，SF87減速機M3方式安裝加7.1、10.1升，SF87減速機M4方式安裝加12升，SF87減速機M5方式安裝加9.1升，SF87減速機M6方式安裝加9.1升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

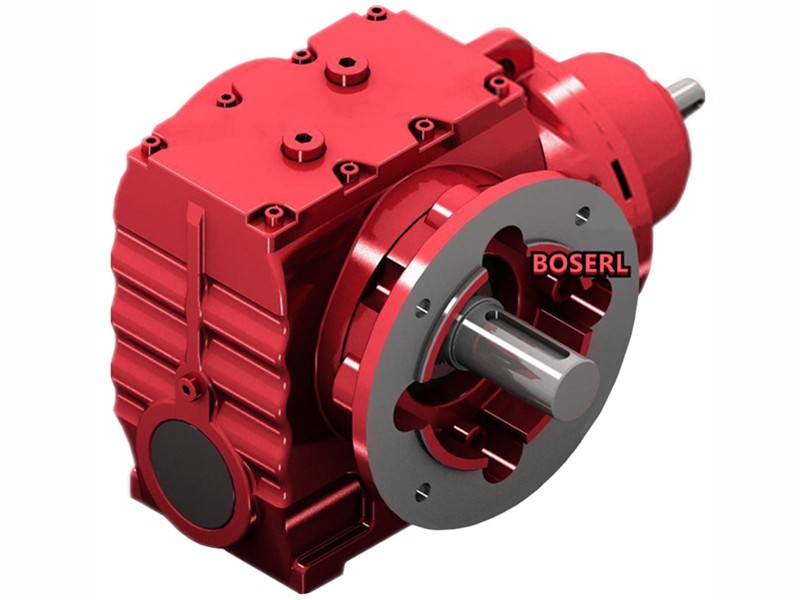

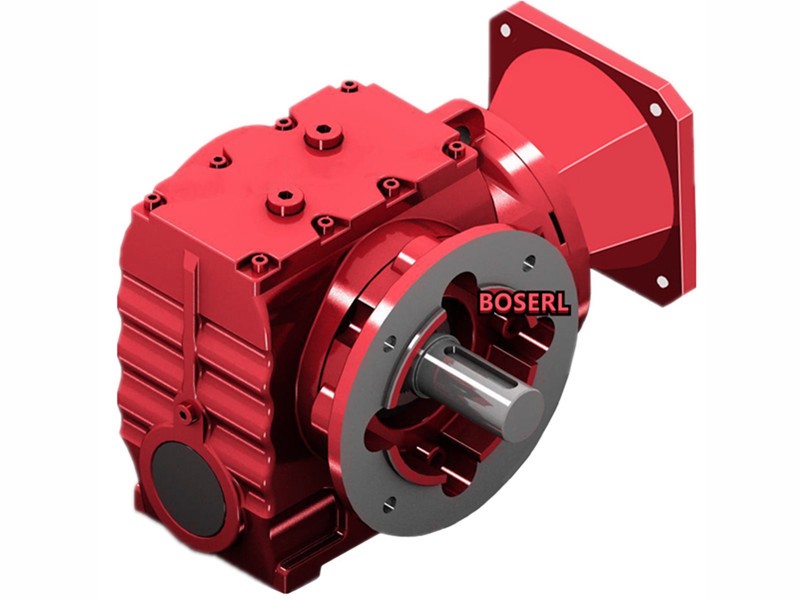

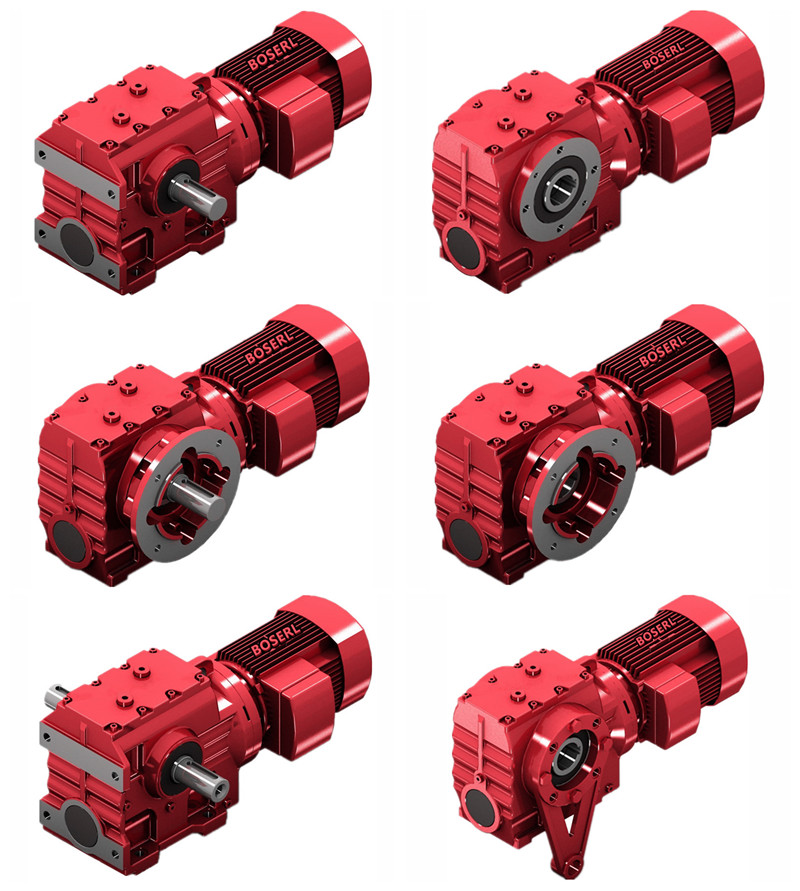

SF87減速機實物圖：圖一為SF87具有自鎖功能立式斜齒輪蝸輪蝸桿減速電機，圖二S87帶自鎖功能底腳斜齒輪蝸輪蝸桿減速電機，圖三為SA87臥式中孔軸斜齒輪蝸輪蝸桿減速電機，圖四為SAF87立式通孔斜齒輪減速機。

SF87減速機型號表示方法：

SF87減速機型號結構SF87-B11KW-4P-減速比-安裝方式-接線盒位置。

SF87減速機性能參數表結構說明：T扭力臂，E編碼器，K代表服務系數，Frame size代表基座規格，HF手動釋放裝置帶自鎖功能，TF電機熱保護裝置，SF87、S87、SA87、SAF87減速機機座號，HR手動釋放裝置，N代表徑向負荷，1、min代表輸出轉數。

SF87減速機電機接線盒方位說明：本頁附件選型樣本視圖為M1方式安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。可提供S和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

SF87減速機參數：

SF87減速機輸出轉數4.9轉，5.4轉，6.3轉，6.9轉，7.8轉，9.3轉，10轉，11轉，14轉，15轉，16轉，17轉，18轉，20轉，22轉，25轉，29轉，32轉，36轉，40轉，45轉，51轉，55轉，57轉，65轉，69轉，71轉，80轉，90轉，100轉，115轉，128轉，154轉，178轉。（以上轉數均為四級電機算出的，可用2P、6P、8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為S系列減速機的輸入）

SF87減速機電機可帶三相、直流、變頻、剎車、防爆、伺服、交流、單相電機SF87帶0.75KW，SF87帶1.1KW，SF87帶1.5KW，SF87帶2.2KW，SF87帶3KW，SF87帶4KW，SF87帶5.5KW，SF87帶7.5KW，SF87帶11KW，SF87帶15KW。自鎖減速機

SF87減速機輸出扭矩2280N.m，2260N.m，2210N.m，2150N.m，2100N.m，2060N.m，2000N.m，1960N.m，1510N.m，1880N.m，1600N.m，1820N.m，1700N.m，1240N.m，1140N.m，1010N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

SF87減速機減速比288比，258.18比，222.4比，202.96比，180比，151.3比，139.05比，123.48比，110.4比，99.26比，91.2比，86.15比，81.76比，77.14比，70.43比，64.27比，64比，57比，47.91比，44.03比，39.1比，34.96比，31.43比，27.28比，25.5比，24.43比，21.43比，20.27比，19.7比，17.49比，15.64比，14.06比，12.21比，10.93比，9.07比，7.88比。

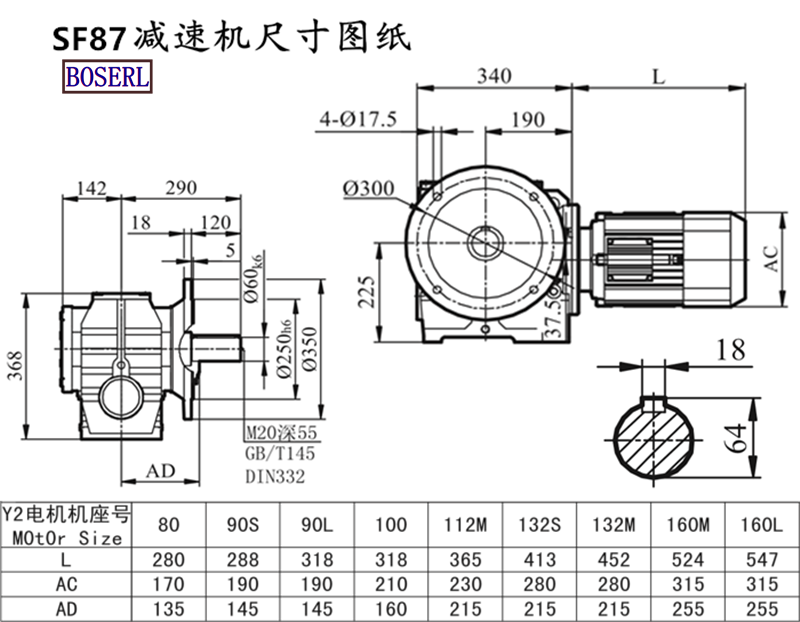

SF87減速機外形尺寸：輸出軸直徑Φ60（可定做）+鍵4，高368*寬432（帶輸出軸）*長340

SF87減速機型號：SF87AQA80,SF87AQA100,SF87AQA115,SF87AQA140,SF87AQA160,SF87AQA190,SF87AQH80,SF87AQH100,SF87AQH115,SF87AQH140,SF87AQH160,SF87AQH190,JRTSF87-Y0.55KW,JRTSF87-Y0.75KW,JRTSF87-Y1.1KW,JRTSF87-Y1.5KW,JRTSF87-Y100M4,JRTSF87-Y112M4,JRTSF87-Y11KW,JRTSF87-Y132M4,JRTSF87-Y15KW,JRTSF87-Y160M4,JRTSF87-Y2.2KW,JRTSF87-Y3KW,JRTSF87-Y4KW,JRTSF87-Y5.5KW,JRTSF87-Y7.5KW,JRTSF87-Y71M4,JRTSF87-Y80M4,JRTSF87-Y90M4,JRTSF87-YEJ100M4,JRTSF87-YEJ112M4,JRTSF87-YEJ132M4,JRTSF87-YEJ160M4,JRTSF87-YEJ71M4,JRTSF87-YEJ80M4,JRTSF87-YEJ90M4,JRTSF87-YS100M4,JRTSF87-YS112M4,JRTSF87-YS132M4,JRTSF87-YS160M4,JRTSF87-YS71M4,JRTSF87-YS80M4,JRTSF87-YS90M4,JRTSF87-YVP100M4,JRTSF87-YVP112M4,JRTSF87-YVP132M4,JRTSF87-YVP160M4,JRTSF87-YVP71M4,JRTSF87-YVP80M4,JRTSF87-YVP90M4,JRTSF87-YVPEJ100M4,JRTSF87-YVPEJ112M4,JRTSF87-YVPEJ132M4,JRTSF87-YVPEJ160M4,JRTSF87-YVPEJ71M4,JRTSF87-YVPEJ80M4,JRTSF87-YVPEJ90M4,EWSF87-Y0.55KW,EWSF87-Y0.75KW,EWSF87-Y1.1KW,EWSF87-Y1.5KW,EWSF87-Y100M4,EWSF87-Y112M4,EWSF87-Y11KW,EWSF87-Y132M4,EWSF87-Y15KW,EWSF87-Y160M4,EWSF87-Y2.2KW,EWSF87-Y3KW,EWSF87-Y4KW,EWSF87-Y5.5KW,EWSF87-Y7.5KW,EWSF87-Y71M4,EWSF87-Y80M4,EWSF87-Y90M4,EWSF87-YEJ100M4,EWSF87-YEJ112M4,EWSF87-YEJ132M4,EWSF87-YEJ160M4,EWSF87-YEJ71M4,EWSF87-YEJ80M4,EWSF87-YEJ90M4,EWSF87-YS100M4,EWSF87-YS112M4,EWSF87-YS132M4,EWSF87-YS160M4,EWSF87-YS71M4,EWSF87-YS80M4,EWSF87-YS90M4,EWSF87-YVP100M4,EWSF87-YVP112M4,EWSF87-YVP132M4,EWSF87-YVP160M4,EWSF87-YVP71M4,EWSF87-YVP80M4,EWSF87-YVP90M4,EWSF87-YVPEJ100M4,EWSF87-YVPEJ112M4,EWSF87-YVPEJ132M4,EWSF87-YVPEJ160M4,EWSF87-YVPEJ71M4,EWSF87-YVPEJ80M4,EWSF87-YVPEJ90M4,SLSF87-Y0.55KW,SLSF87-Y0.75KW,SLSF87-Y1.1KW,SLSF87-Y1.5KW,SLSF87-Y100M4,SLSF87-Y112M4,SLSF87-Y11KW,SLSF87-Y132M4,SLSF87-Y15KW,SLSF87-Y160M4,SLSF87-Y2.2KW,SLSF87-Y3KW,SLSF87-Y4KW,SLSF87-Y5.5KW,SLSF87-Y7.5KW,SLSF87-Y71M4,SLSF87-Y80M4,SLSF87-Y90M4,SLSF87-YEJ100M4,SLSF87-YEJ112M4,SLSF87-YEJ132M4,SLSF87-YEJ160M4,SLSF87-YEJ71M4,SLSF87-YEJ80M4,SLSF87-YEJ90M4,SLSF87-YS100M4,SLSF87-YS112M4,SLSF87-YS132M4,SLSF87-YS160M4,SLSF87-YS71M4,SLSF87-YS80M4,SLSF87-YS90M4,SLSF87-YVP100M4,SLSF87-YVP112M4,SLSF87-YVP132M4,SLSF87-YVP160M4,SLSF87-YVP71M4,SLSF87-YVP80M4,SLSF87-YVP90M4,SLSF87-YVPEJ100M4,SLSF87-YVPEJ112M4,SLSF87-YVPEJ132M4,SLSF87-YVPEJ160M4,SLSF87-YVPEJ71M4,SLSF87-YVPEJ80M4,SLSF87-YVPEJ90M4,DSZSF87-Y0.55KW,DSZSF87-Y0.75KW,DSZSF87-Y1.1KW,DSZSF87-Y1.5KW,DSZSF87-Y100M4,DSZSF87-Y112M4,DSZSF87-Y11KW,DSZSF87-Y132M4,DSZSF87-Y15KW,DSZSF87-Y160M4,DSZSF87-Y2.2KW,DSZSF87-Y3KW,DSZSF87-Y4KW,DSZSF87-Y5.5KW,DSZSF87-Y7.5KW,DSZSF87-Y71M4,DSZSF87-Y80M4,DSZSF87-Y90M4,DSZSF87-YEJ100M4,DSZSF87-YEJ112M4,DSZSF87-YEJ132M4,DSZSF87-YEJ160M4,DSZSF87-YEJ71M4,DSZSF87-YEJ80M4,DSZSF87-YEJ90M4,DSZSF87-YS100M4,DSZSF87-YS112M4,DSZSF87-YS132M4,DSZSF87-YS160M4,DSZSF87-YS71M4,DSZSF87-YS80M4,DSZSF87-YS90M4,DSZSF87-YVP100M4,DSZSF87-YVP112M4,DSZSF87-YVP132M4,DSZSF87-YVP160M4,DSZSF87-YVP71M4,DSZSF87-YVP80M4,DSZSF87-YVP90M4,DSZSF87-YVPEJ100M4,DSZSF87-YVPEJ112M4,DSZSF87-YVPEJ132M4,DSZSF87-YVPEJ160M4,DSZSF87-YVPEJ71M4,DSZSF87-YVPEJ80M4,DSZSF87-YVPEJ90M4,BSF87-Y0.55KW,BSF87-Y0.75KW,BSF87-Y1.1KW,BSF87-Y1.5KW,BSF87-Y100M4,BSF87-Y112M4,BSF87-Y11KW,BSF87-Y132M4,BSF87-Y15KW,BSF87-Y160M4,BSF87-Y2.2KW,BSF87-Y3KW,BSF87-Y4KW,BSF87-Y5.5KW,BSF87-Y7.5KW,BSF87-Y71M4,BSF87-Y80M4,BSF87-Y90M4,BSF87-YEJ100M4,BSF87-YEJ112M4,BSF87-YEJ132M4,BSF87-YEJ160M4,BSF87-YEJ71M4,BSF87-YEJ80M4,BSF87-YEJ90M4,BSF87-YS100M4,BSF87-YS112M4,BSF87-YS132M4,BSF87-YS160M4,BSF87-YS71M4,BSF87-YS80M4,BSF87-YS90M4,BSF87-YVP100M4,BSF87-YVP112M4,BSF87-YVP132M4,BSF87-YVP160M4,BSF87-YVP71M4,BSF87-YVP80M4,BSF87-YVP90M4,BSF87-YVPEJ100M4,BSF87-YVPEJ112M4,BSF87-YVPEJ132M4,BSF87-YVPEJ160M4,BSF87-YVPEJ71M4,BSF87-YVPEJ80M4,BSF87-YVPEJ90M4,GSF87-Y0.55KW,GSF87-Y0.75KW,GSF87-Y1.1KW,GSF87-Y1.5KW,GSF87-Y100M4,GSF87-Y112M4,GSF87-Y11KW,GSF87-Y132M4,GSF87-Y15KW,GSF87-Y160M4,GSF87-Y2.2KW,GSF87-Y3KW,GSF87-Y4KW,GSF87-Y5.5KW,GSF87-Y7.5KW,GSF87-Y71M4,GSF87-Y80M4,GSF87-Y90M4,GSF87-YEJ100M4,GSF87-YEJ112M4,GSF87-YEJ132M4,GSF87-YEJ160M4,GSF87-YEJ71M4,GSF87-YEJ80M4,GSF87-YEJ90M4,GSF87-YS100M4,GSF87-YS112M4,GSF87-YS132M4,GSF87-YS160M4,GSF87-YS71M4,GSF87-YS80M4,GSF87-YS90M4,GSF87-YVP100M4,GSF87-YVP112M4,GSF87-YVP132M4,GSF87-YVP160M4,GSF87-YVP71M4,GSF87-YVP80M4,GSF87-YVP90M4,GSF87-YVPEJ100M4,GSF87-YVPEJ112M4,GSF87-YVPEJ132M4,GSF87-YVPEJ160M4,GSF87-YVPEJ71M4,GSF87-YVPEJ80M4,GSF87-YVPEJ90M4,SCF87-Y0.55KW,SCF87-Y0.75KW,SCF87-Y1.1KW,SCF87-Y1.5KW,SCF87-Y100M4,SCF87-Y112M4,SCF87-Y11KW,SCF87-Y132M4,SCF87-Y15KW,SCF87-Y160M4,SCF87-Y2.2KW,SCF87-Y3KW,SCF87-Y4KW,SCF87-Y5.5KW,SCF87-Y7.5KW,SCF87-Y71M4,SCF87-Y80M4,SCF87-Y90M4,SCF87-YEJ100M4,SCF87-YEJ112M4,SCF87-YEJ132M4,SCF87-YEJ160M4,SCF87-YEJ71M4,SCF87-YEJ80M4,SCF87-YEJ90M4,SCF87-YS100M4,SCF87-YS112M4,SCF87-YS132M4,SCF87-YS160M4,SCF87-YS71M4,SCF87-YS80M4,SCF87-YS90M4,SCF87-YVP100M4,SCF87-YVP112M4,SCF87-YVP132M4,SCF87-YVP160M4,SCF87-YVP71M4,SCF87-YVP80M4,SCF87-YVP90M4,SCF87-YVPEJ100M4,SCF87-YVPEJ112M4,SCF87-YVPEJ132M4,SCF87-YVPEJ160M4,SCF87-YVPEJ71M4,SCF87-YVPEJ80M4,SCF87-YVPEJ90M4,MTNF87-Y0.55KW,MTNF87-Y0.75KW,MTNF87-Y1.1KW,MTNF87-Y1.5KW,MTNF87-Y100M4,MTNF87-Y112M4,MTNF87-Y11KW,MTNF87-Y132M4,MTNF87-Y15KW,MTNF87-Y160M4,MTNF87-Y2.2KW,MTNF87-Y3KW,MTNF87-Y4KW,MTNF87-Y5.5KW,MTNF87-Y7.5KW,MTNF87-Y71M4,MTNF87-Y80M4,MTNF87-Y90M4,MTNF87-YEJ100M4,MTNF87-YEJ112M4,MTNF87-YEJ132M4,MTNF87-YEJ160M4,MTNF87-YEJ71M4,MTNF87-YEJ80M4,MTNF87-YEJ90M4,MTNF87-YS100M4,MTNF87-YS112M4,MTNF87-YS132M4,MTNF87-YS160M4,MTNF87-YS71M4,MTNF87-YS80M4,MTNF87-YS90M4,MTNF87-YVP100M4,MTNF87-YVP112M4,MTNF87-YVP132M4,MTNF87-YVP160M4,MTNF87-YVP71M4,MTNF87-YVP80M4,MTNF87-YVP90M4,MTNF87-YVPEJ100M4,MTNF87-YVPEJ112M4,MTNF87-YVPEJ132M4,MTNF87-YVPEJ160M4,MTNF87-YVPEJ71M4,MTNF87-YVPEJ80M4,MTNF87-YVPEJ90M4,WXSF87-WSS0.55KW,WXSF87-WSS0.75KW,WXSF87-WSS1.1KW,WXSF87-WSS1.5KW,WXSF87-WSS100M4,WXSF87-WSS112M4,WXSF87-WSS11KW,WXSF87-WSS132M4,WXSF87-WSS15KW,WXSF87-WSS160M4,WXSF87-WSS2.2KW,WXSF87-WSS3KW,WXSF87-WSS4KW,WXSF87-WSS5.5KW,WXSF87-WSS7.5KW,WXSF87-WSS71M4,WXSF87-WSS80M4,WXSF87-WSS90M4,WXSF87-WSSB100M4,WXSF87-WSSB112M4,WXSF87-WSSB132M4,WXSF87-WSSB160M4,WXSF87-WSSB71M4,WXSF87-WSSB80M4,WXSF87-WSSB90M4,WXSF87-WSSVP100M4,WXSF87-WSSVP112M4,WXSF87-WSSVP132M4,WXSF87-WSSVP160M4,WXSF87-WSSVP71M4,WXSF87-WSSVP80M4,WXSF87-WSSVP90M4,WXSF87-WSSVPB100M4,WXSF87-WSSVPB112M4,WXSF87-WSSVPB132M4,WXSF87-WSSVPB160M4,WXSF87-WSSVPB71M4,WXSF87-WSSVPB80M4,WXSF87-WSSVPB90M4。伺服電機蝸輪蝸桿減速機

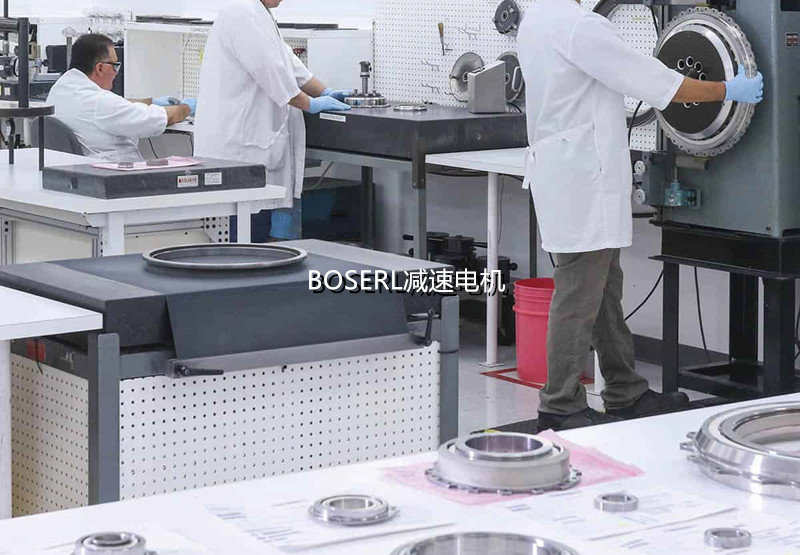

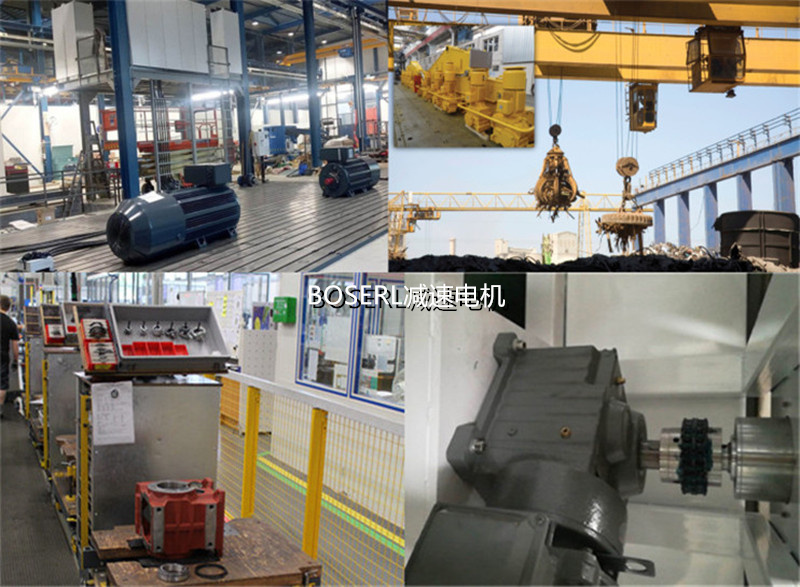

SF87減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.h6812.cn/product/list-sfxiliejiansuji-cn.html

推薦類似型號：S87減速機
